Step 01

Read the dieline

Mark the top, base, inside and outside panels on the supplied drawing. Locate cuts, scores and locking areas before placing text or artwork, and confirm the viewing orientation when the blank is folded.

Step 02

Check an assembled print

Look at graphics that cross adjacent panels and at text near edges. Open and close the printed sample to find information hidden by flaps or closures, then correct the artwork on the controlled drawing.

Further reference views

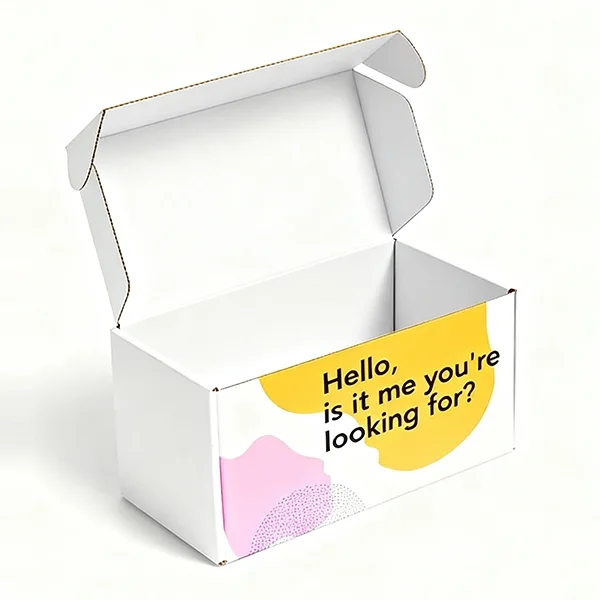

Printed corrugated packaging box — packaging illustration 2
Topic illustration from the archived packaging guide. Confirm dimensions, material and fit for your own project.

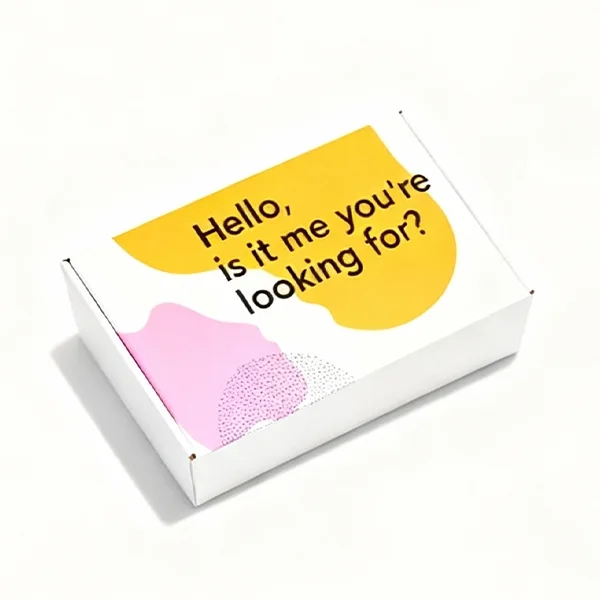

Printed corrugated packaging box — packaging illustration 3
Topic illustration from the archived packaging guide. Confirm dimensions, material and fit for your own project.

Turn the method into a sample brief

Bring the result of “read the dieline” and “check an assembled print” to the packaging discussion. Share the real contents, relevant drawings and the decision still to resolve.
